Product Details:
Payment & Shipping Terms:
|
Material: | Polyamide | Diameter: | 4mm-160mm |
---|---|---|---|
Length: | 200m Or 220m | Color: | Any |

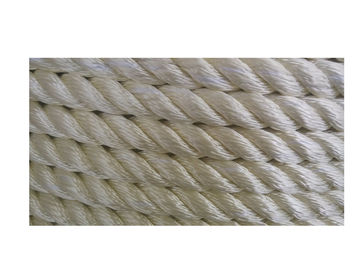

Products Description: Compared to former nylon rope, Our nylon rope produces 30% higher strength, providing substantially better service life. It keep softness even after long period of operation, and keeps endurance to direct ray, inclement climate and cold climate.
Material: high nylon fiber
Specific gravity: Density 1.14 not floating
Melting point: 180 ℃
Application: marine, fishing, offshore, industry
Length per coil: 220m
Spliced strength: ±10% lower
Weight and length tolerance: ±5%
MBL: ISO 2307 standard
Other sizes can be customized
Parameter Table
dia mm | 8 strand | 12 strand | double braid | |||
mbl | weight | mbl | weight | mbl | weight | |
kn | kgs/200m | kn | kgs/200m | kn | kgs/200m | |
40 | 3 | 33 | 22 | 12.3 | 123 | 123 |
45 | 3–1/2 | 46 | 30 | 16.6 | 163 | 163 |
50 | 4 | 59 | 39 | 21.3 | 209 | 209 |
55 | 4–1/2 | 74 | 49 | 26.5 | 260 | 260 |
60 | 5 | 90 | 59 | 32 | 314 | 314 |
65 | 5–1/2 | 109 | 72 | 38 | 373 | 373 |
70 | 6 | 130 | 86 | 42 | 432 | 432 |
75 | 6–1/4 | 141 | 93 | 47 | 460 | 460 |
80 | 6–1/2 | 149 | 98 | 51 | 500 | 500 |
85 | 7 | 178 | 117 | 59 | 579 | 579 |
90 | 7–1/2 | 200 | 132 | 67.3 | 660 | 660 |
95 | 8 | 220 | 145 | 75 | 736 | 736 |
100 | 8–1/2 | 249 | 165 | 84 | 825 | 825 |
